Effortless case packing for the egg industry

We build case packing solutions that ensure eggs end up in their transport boxes unharmed, on time.

Our case packer is designed to seamlessly integrate into your egg packing line, offering unmatched speed and reliability. It makes sure your egg cartons get packed into transport boxes in perfect shape.

Our case packer is designed to seamlessly integrate into your egg packing line, offering unmatched speed and reliability. It makes sure your egg cartons get packed into transport boxes in perfect shape.

Compact footprint

Measuring only one meter wide, we've made sure our case packer fits even between the tightest of packing lanes.

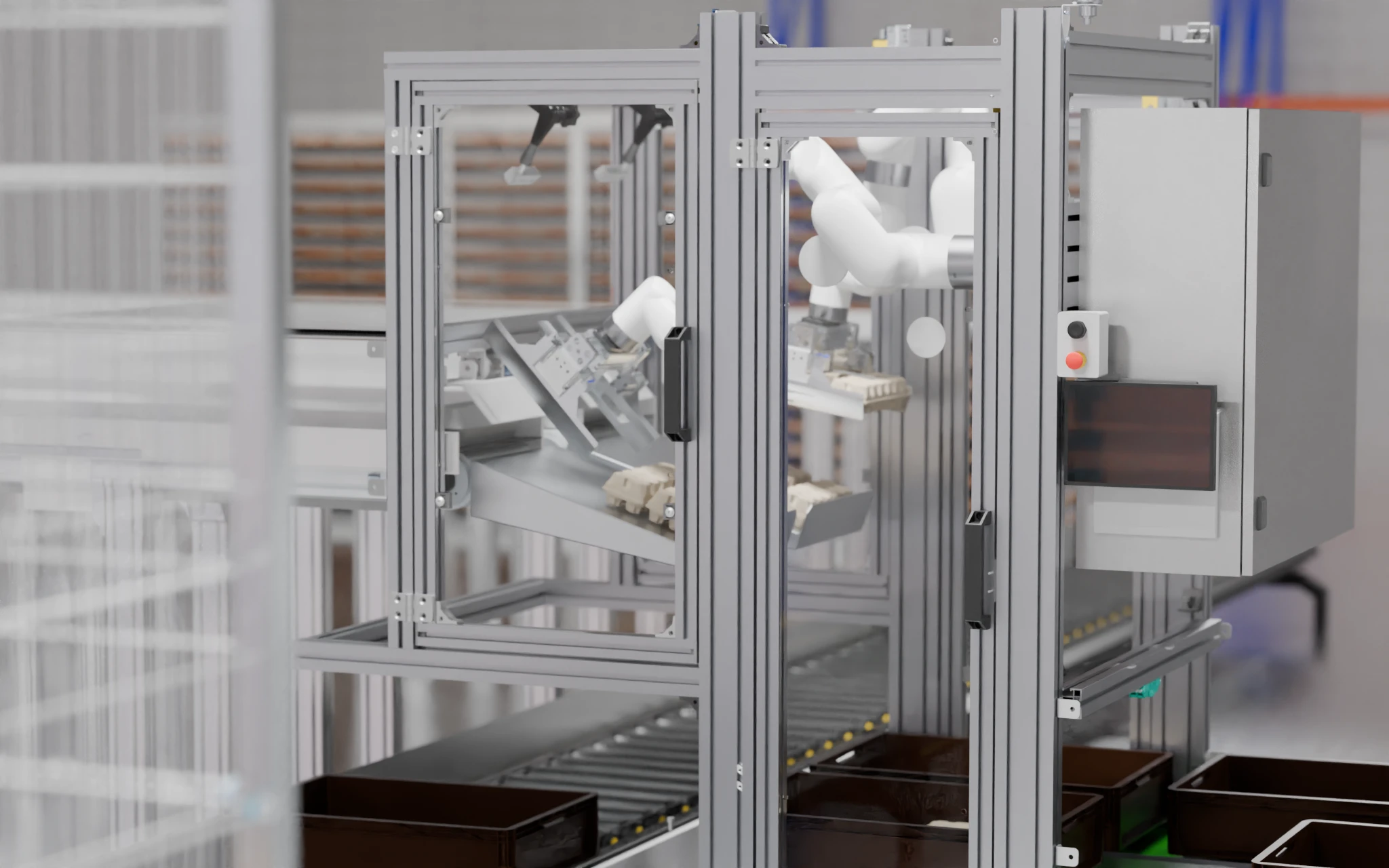

Side view of an egg case packing machine.
High Performance

A powerhouse of packing performance. With two robots, our case packer can pack over 30 000 eggs/hour.

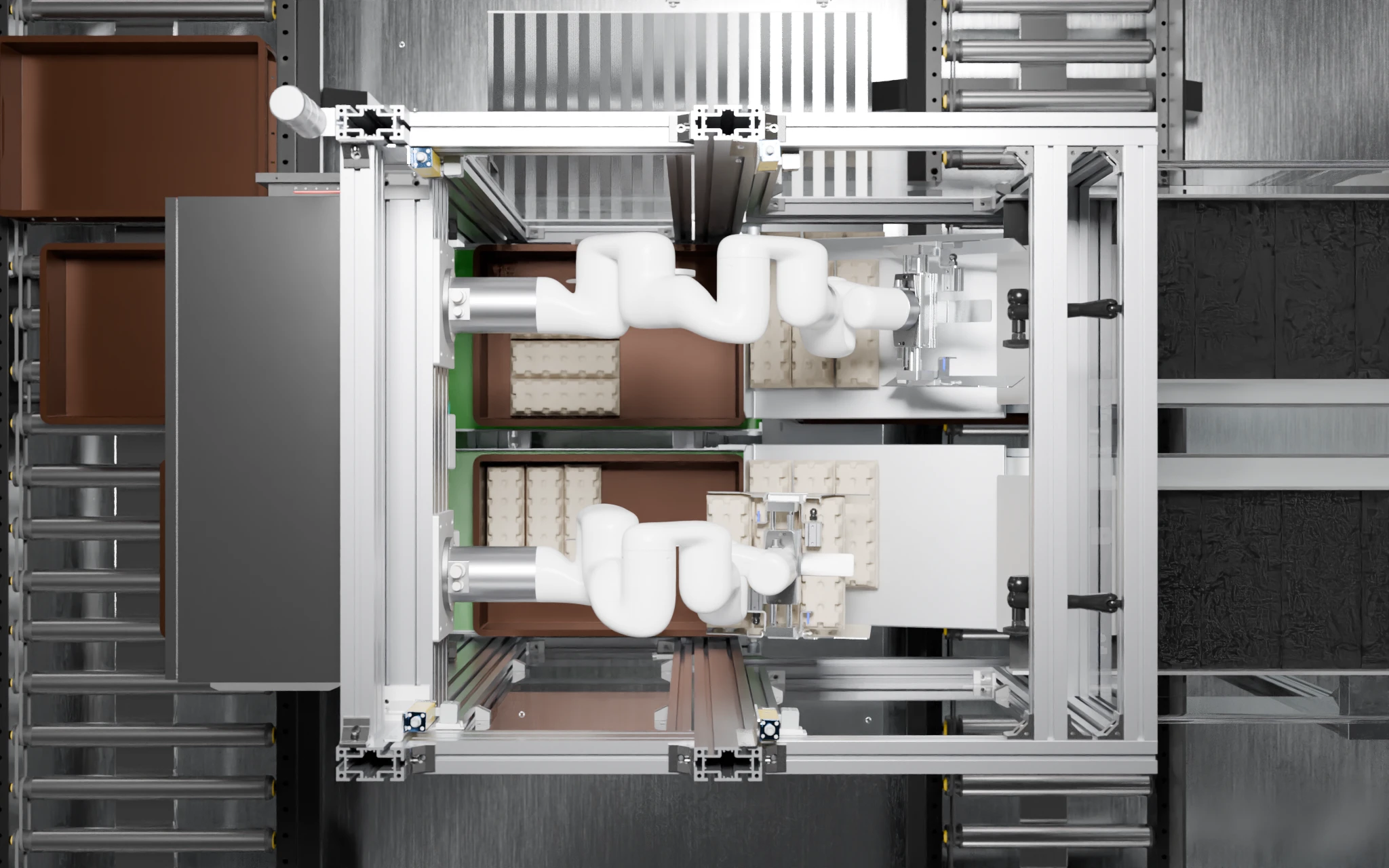

Top down view of a modern case packer showing two AI robots packing eggs into reusable plastic containers.
Easy to move around

With lockable wheels as it's feet, it's easy to move around and get out of the way when cleaning, doing maintenance or when it's not needed.

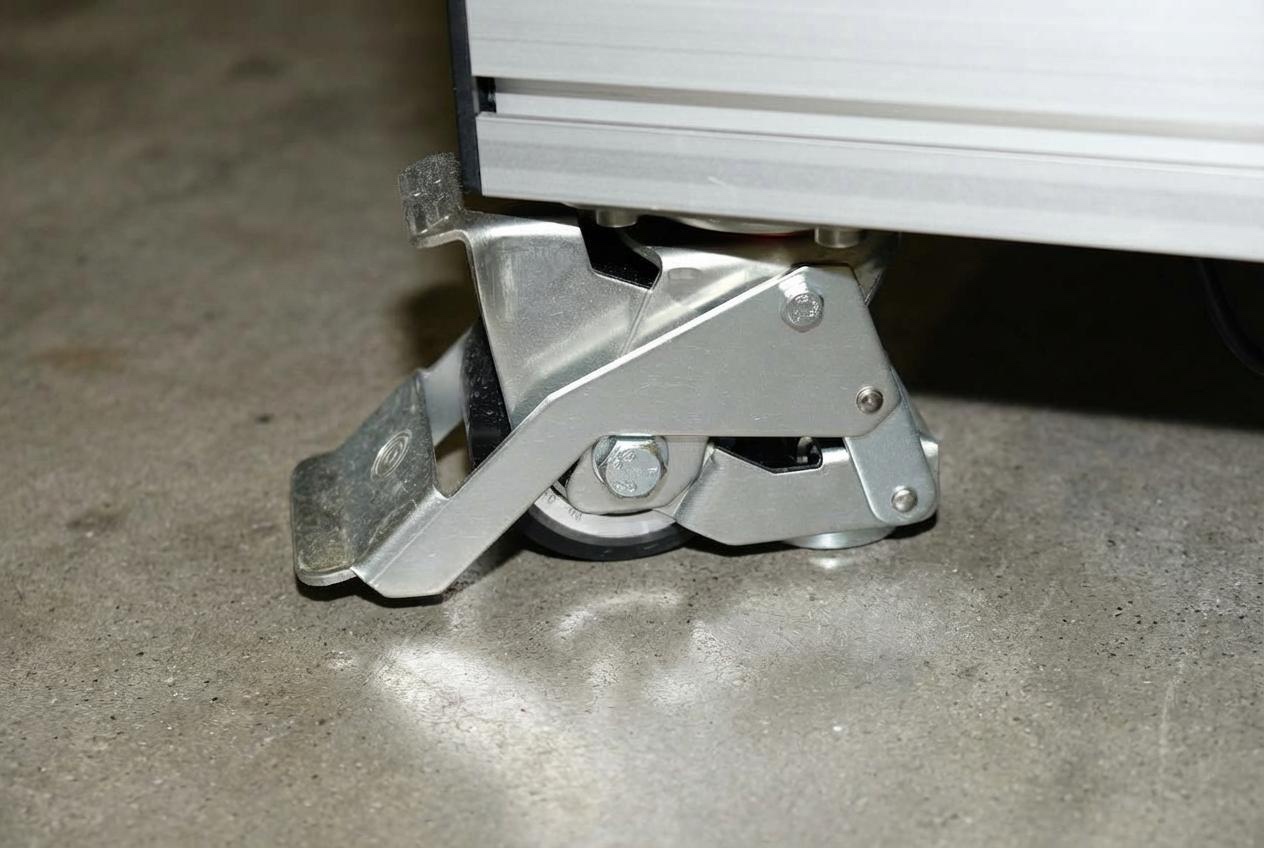

Wheels of a case packing machine enabling the case packer to be easily moved when cleaning or doing maintenance.
Touchscreen for Easy operation

Super fast changeovers and packing pattern reconfigurations are made possible via the touchscreen. With the tap of a button, you are packing a different product.

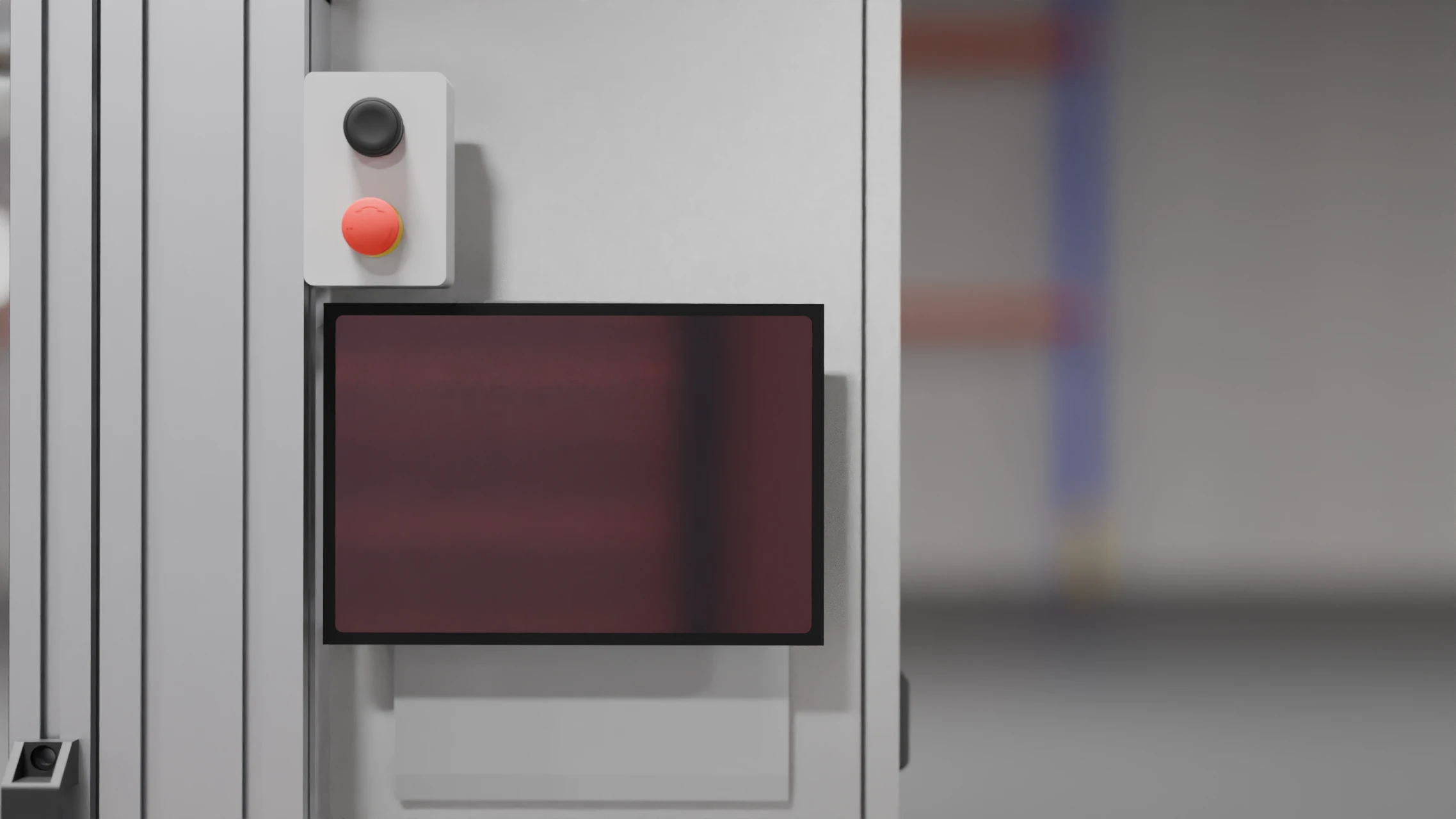

Touchscreen of a case packing machine through which the packing patterns and changeovers can quickly be configured.
A technical drawing of a case packing machine.

Highlights

  • Packing speed
    Up to 50 000 eggs/hour
  • Easy to install
    <30 minute setup time
  • Products supported
    Can pack most egg carton types
  • Packing pattern
    Customizeable packing patterns
  • Quality control
    Visual product defect detection
  • RFID reader
    READs transport box RFID tags
Drawing of a machine part.

Specifications

  • Base Dimensions
    1 x 1.5 x 1.9 meters
  • screen
    Integrated touchscreen
  • Weight
    120kg
  • Materials
    Stainless steel, aluminum
  • MAX End effector speed
    1 m/s
  • Sensors
    6x stereo cameras
    RFID reader
    PNEUMATIC SeNSORS
  • Power input
    100-240 VAC
  • Power consumption
    1500W peak
  • Pneumatic range
    6-12 BAR
  • Max payload
    4kg per robot
  • RFID Reader
    EPCGlobal Gen 2 reader

You asked.
We answered.

But if we didn't, just reach out and we will be happy to help you.

Contact us

What kind of throughput is the case packer able to achieve?

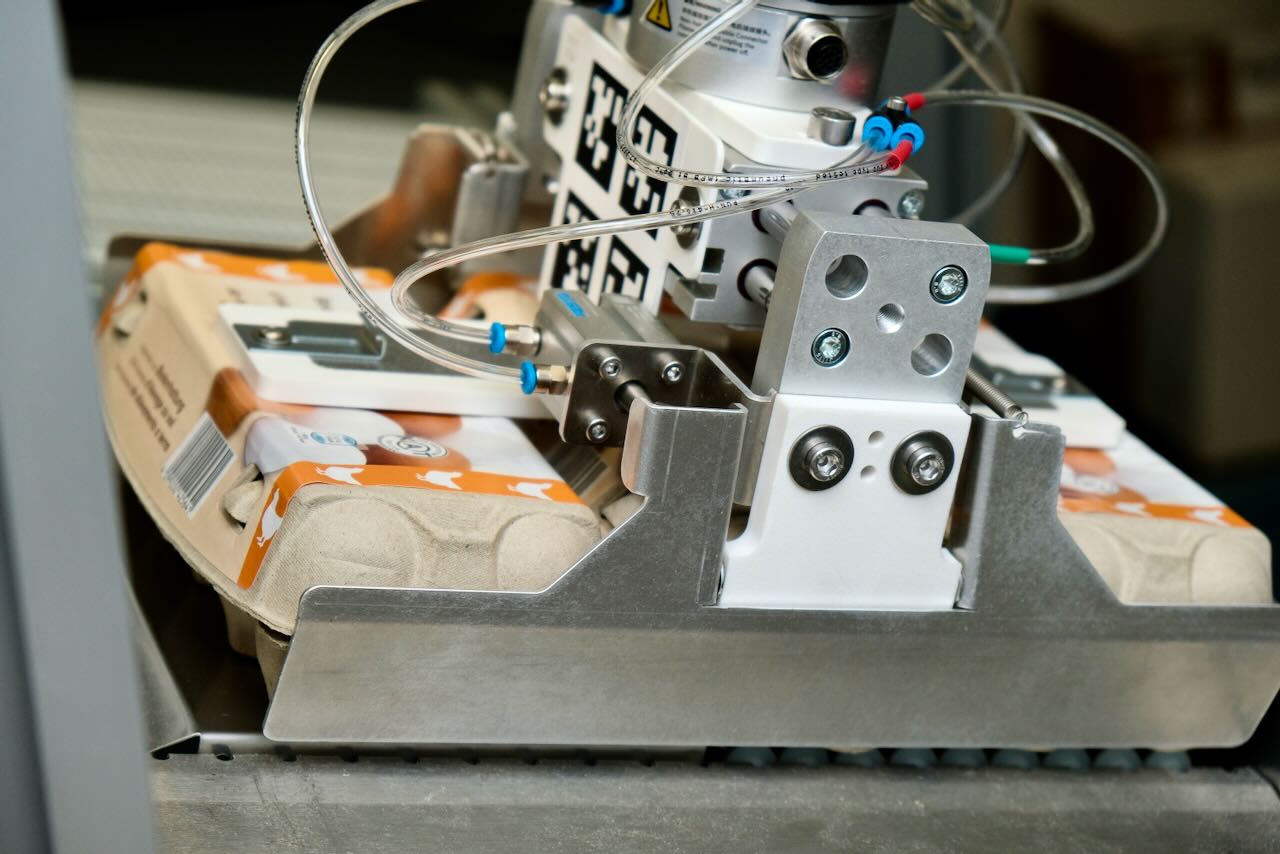

The exact throughput will depend on the transport box, packing pattern and packaging size. With the largest carton sizes and transport boxes where we can place four cartons at a time, we are able to achieve over 50 000 eggs per hour on a single line. The case packer will grasp multiple products at once when possible, which means that packing patterns enabling those multiple grasps will be much faster. Get in touch and we can calculate the exact speed for your boxes and packing patterns.

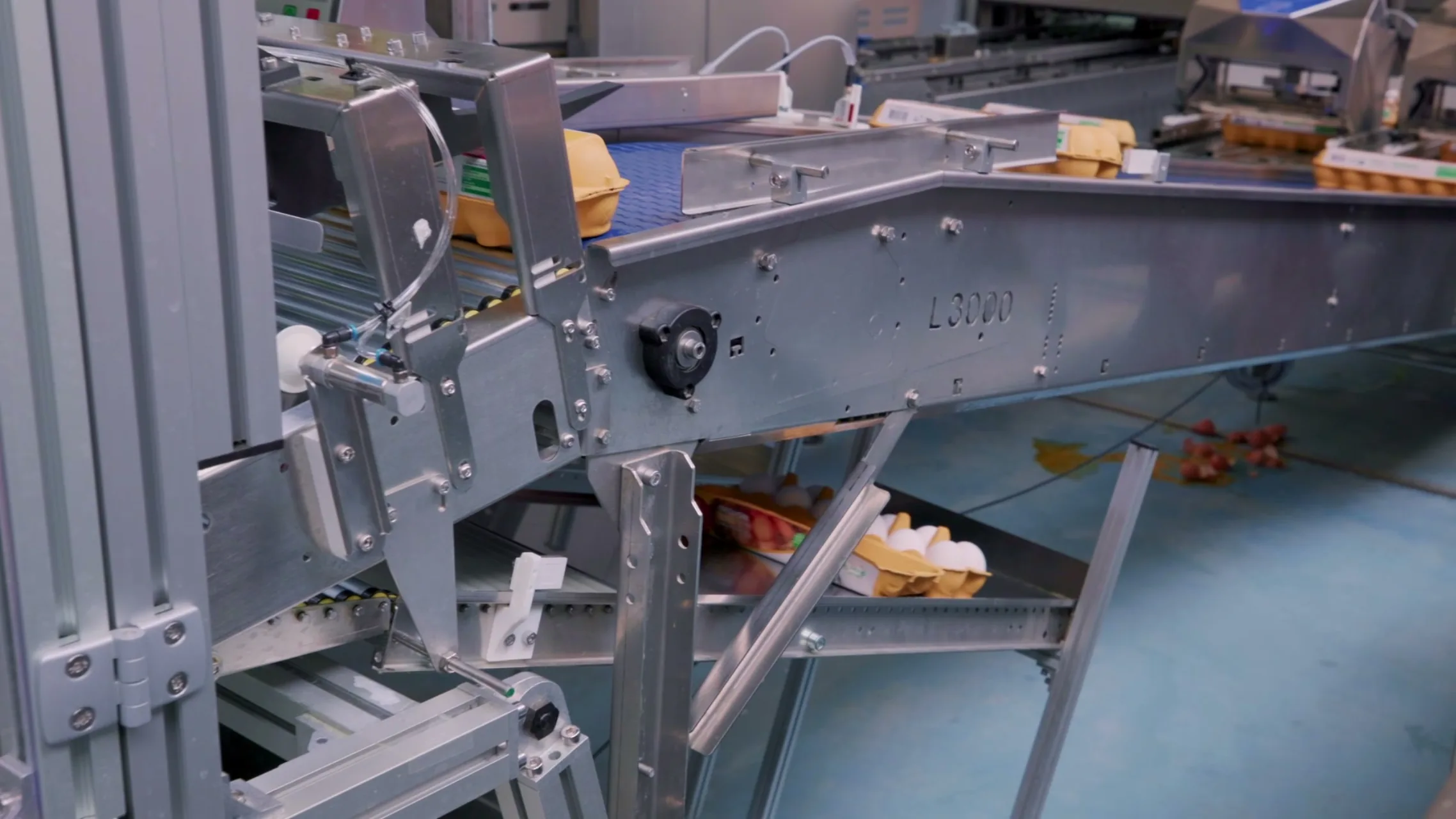

Are you able to detect defective products?

Yes! We are able to detect visual defects such as missing best before dates, crushed cartons, missing labels, open cartons and much more. As a general rule, if the defect can be seen visually, the case packer will be able to detect the defect and won’t pack the defective products.

What kind of infrastructure is needed to integrate the case packer?

The case packer doesn’t require any IT integration with upstream or downstream machines. It will simply wait for products to arrive on the line before packing them. The case packer is powered via a normal AC power. It can connect to the internet via wifi or ethernet, but this is not required.

Which egg graders is the case packer compatible with?

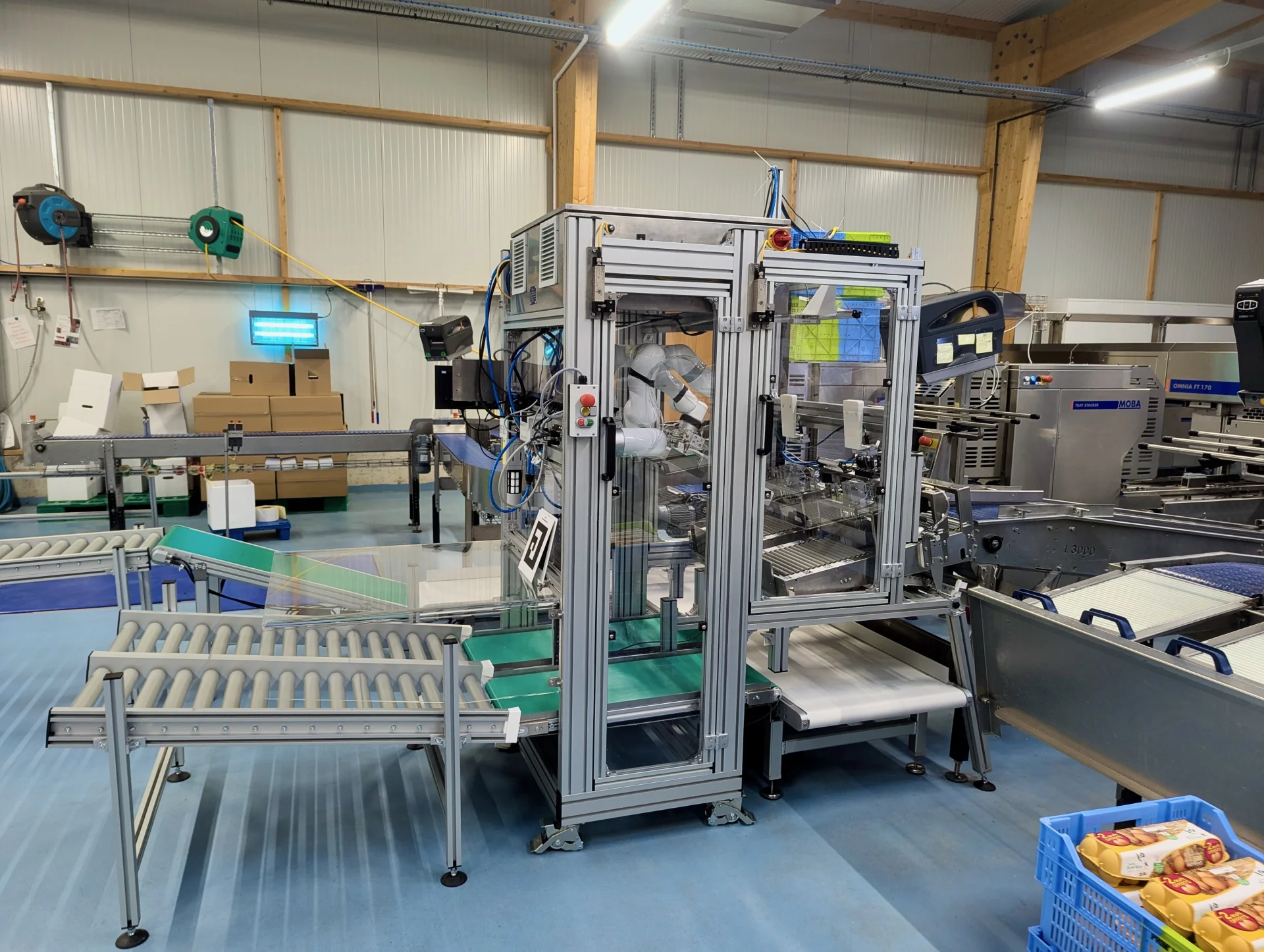

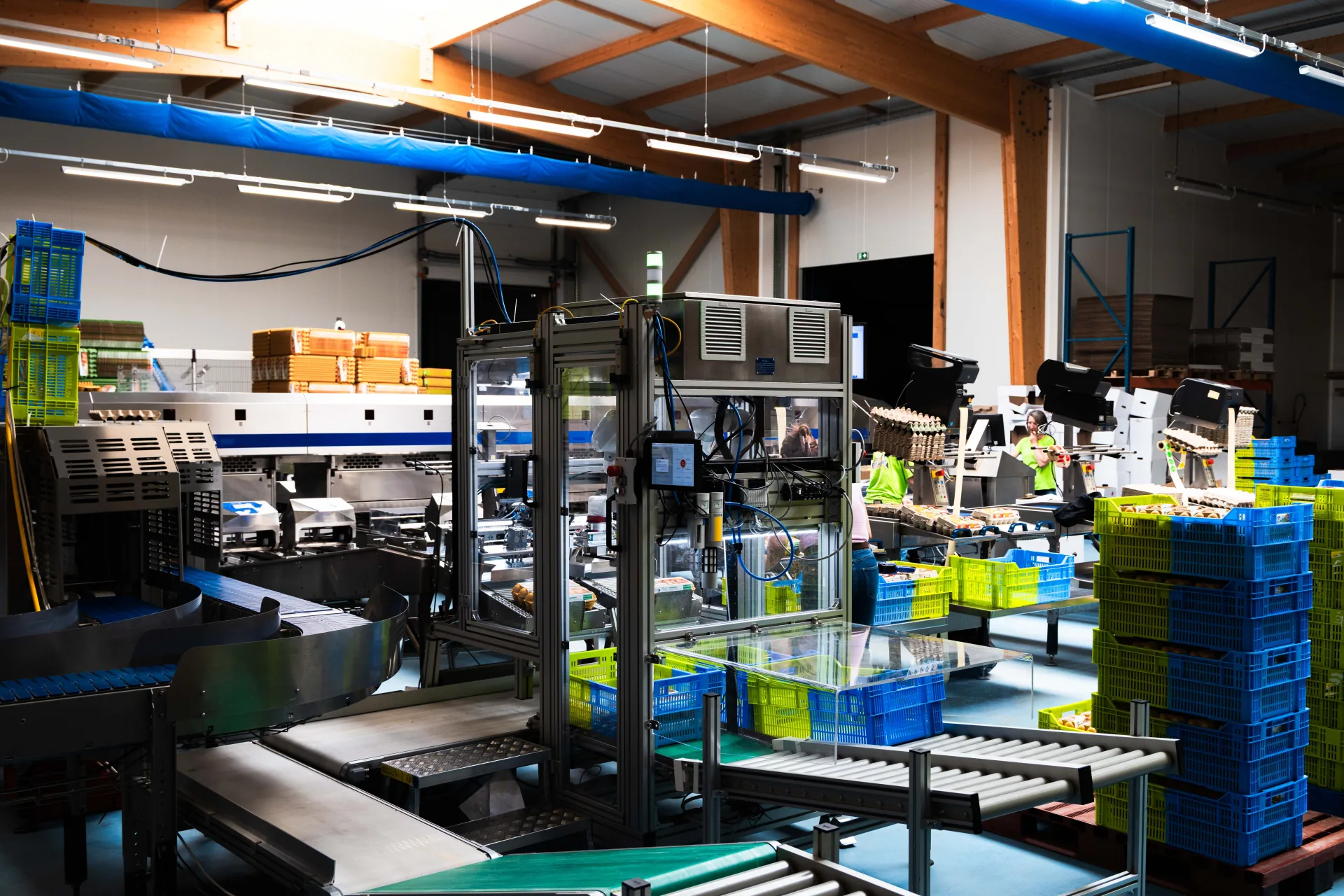

The case packer is compatible with most egg grading machines, such as the ones made by Moba or Sanovo. It can also be integrated with other machines and custom production lines. Get in touch to learn more about how it integrates with upstream lines.
